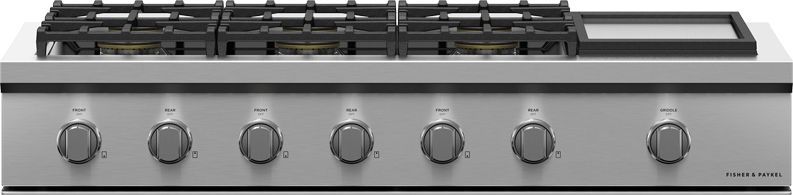

Fisher & Paykel Series 9 48" Stainless Steel Natural Gas Rangetop


Model #:

CPV3-486GD-N

Model #: CPV3-486GD-N
986959
Fisher & Paykel
$4,599.00
REBATE
OUT OF STOCK

At a Glance

Product Dimensions 8.31"h x 47.88"w x 28"d

A powerful six burner rangetop with Professional styling and the additional cooking flexibility of a stainless steel griddle. This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.Read More

Additional Savings Available

$4,599.00

What We Offer

Protect Your Purchase
None Selected
Services
None Selected
You Might Also Need
None Selected

Visit Promotions and Rebates

Get to know this product.

Product Overview

Product Overview
Gas Rangetop, 48", Griddle

Griddle with burners that deliver up to 23,500 BTU heat per burner, for seriously fast boiling

Continuous surface grates designed for pots and pans to move safely across the cooktop

The stainless steel griddle is great for cooking anything from grilled cheese to quesadillas

Made from quality materials and real stainless steel

Cooktop Power

Sealed Dual Flow Burners™ deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

Precise Control

From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.

Cooking Flexibility

The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.

Easy to Clean

These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.

Information at a Glance

LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.

Design Quality

This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.

Useful Documents
Specifications

General Specs

ColorStainless Steel
Fuel TypeNatural Gas
Appliance ColorStainless Steel
Depth (in.)28
Grate MaterialCast Iron
Height (in.)8.31
Width (in.)47.88
Manufacturer Warranty2 Years Limited
Appliance Fit Width (in.)48
CollectionSeries 9
Color Finish NameStainless Steel
Burner TypeSealed
Number of Elements/Burners6
Cooktop Surface StyleGrate
Voltage120
Frequency60
Amp15
Cooktop FeaturesHot Surface Indicator Light, Continuous Grate
Cooktop SurfacePorcelain

Burner Ratings

Max burner power 23500BTU
Power back center 18500BTU
Power back left 18500BTU
Power back right 18500BTU
Power front center 18500BTU
Power front left 23500BTU
Power front right 18500BTU
Power griddle 18000BTU
Total cooktop power 134000BTU

Cleaning

Easy clean porcelain basepan Yes

Controls

Metal illuminated dials Yes
Star K Certification Yes

Gas Requirements

Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural gas) 6" to 9" W.C

Performance

Sealed Dual Flow Burners™ 6
Sealed range top Yes
Simmer on all burners 140°F

Power Requirements

Amperage 15A
Supply frequency 60Hz
Supply voltage 120V

Product Dimensions

Depth28"
Height8 5/16"
Width47 7/8"

Recommended Back Guards Ventilation

Combustible situation BGCV2-3048H
Non combustible situation BGCV2-3048 / BGCV2-1248
Pro hood HCB48-12_N

Warranty

Parts and labor Limited 2 years
